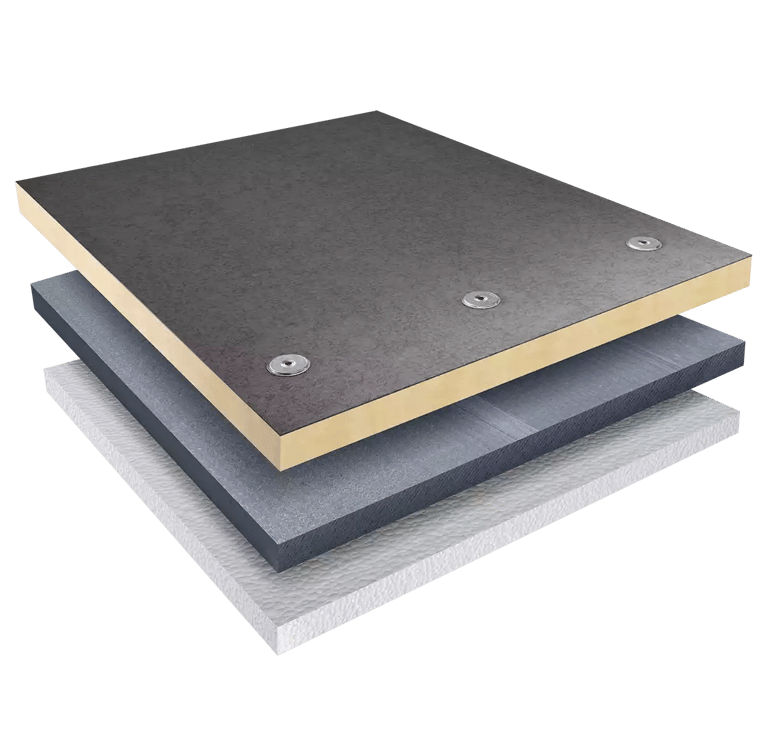

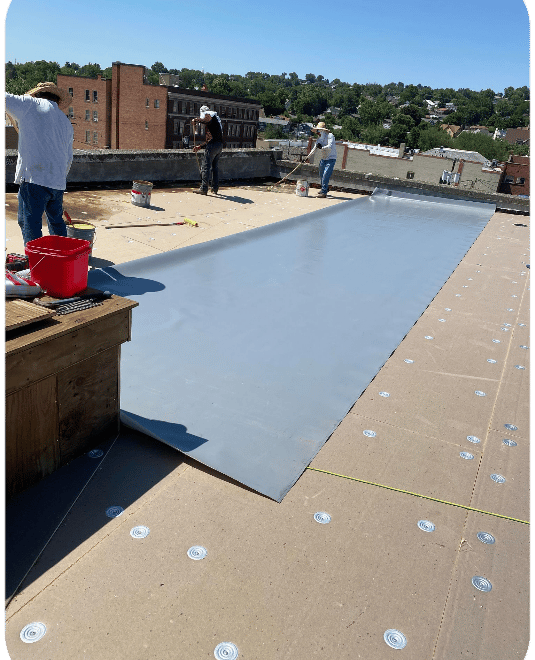

Insulation / Coverboard Securement

Manufactures have performed extensive testing and provide specifications and charts dictating which fasteners must be used into which deck type and how many fasteners must be used to achieve the desired uplift pressures, desired warranty and to meet local codes

• 6 to 32 fasteners will be required to secure each 4’ x 8’ board.

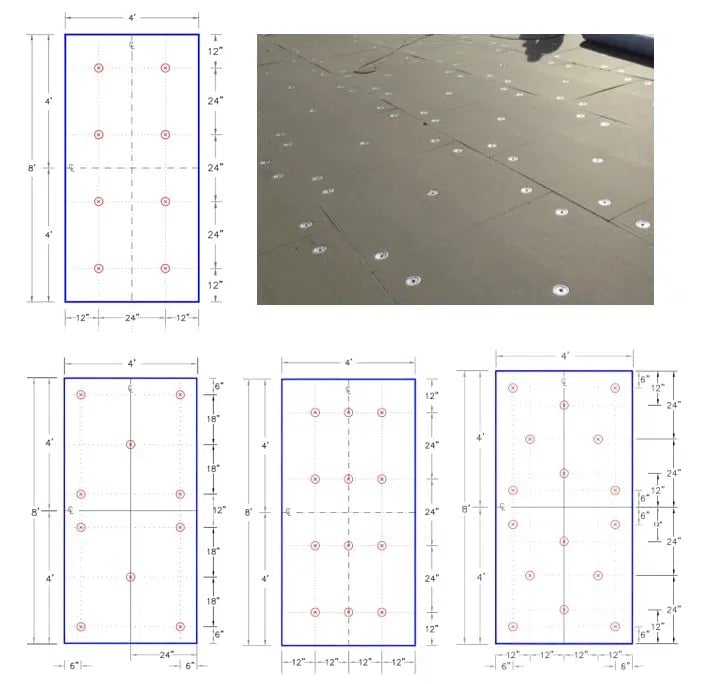

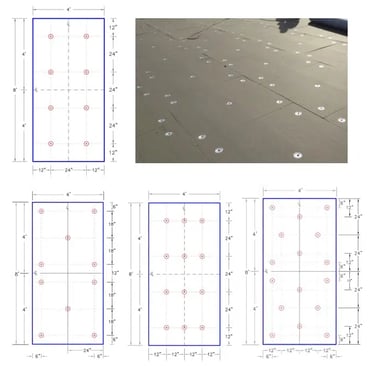

• Below are common fastening patterns detailing 8, 10, 12 and 16 fasteners per board.
